Brownstown
Three welded tube mills and 170,000 square feet of manufacturing and value-added operations. Round, square, rectangular and selected special profiles.
PRODUCTS & SERVICES
From coil to finished component.
Choose the profile, material and secondary operations your program needs.
MANUFACTURING RANGE
Download capability chartSteel tubing capabilities
| Product | Published size range | Materials / details |
|---|---|---|
| Round tubing | 0.706″–3.500″ OD | HR, HRPO, CR and galvanized |
| Square tubing | 0.500″–2.500″ | Mechanical tubing and fabricated components |
| Rectangular / shape tubing | 0.75″ × 1.5″–2.0″ × 3.0″ | Special shapes by inquiry |
| Standard published gauges | 22–11 gauge | Send required wall thickness in inches for confirmation |
Published production ranges from E&H’s product page. Not every size, wall and material combination is available. Ask about other walls and tooling. Weight and tolerance tables in the marketing package are reference data, not a guarantee of production availability.
Salem
Our newer tube mill, with a focus on 1″ round and 1″ square programs. Sales confirms available tooling, gauge, material and run quantities for each inquiry.

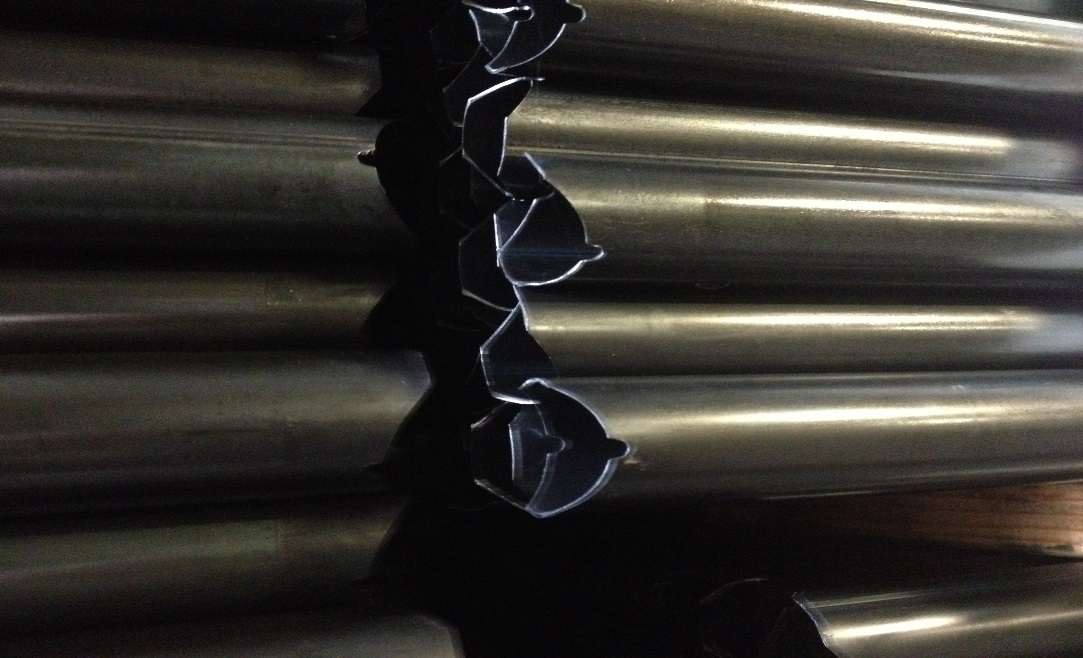

More about Salem →VALUE-ADDED OPERATIONS
More done before delivery.
Tube laserNotching & copingSwagingHaven & custom cuttingDe-dimplingDeburring & de-brushingScarf removal on select sizesSuper Shield coating
Super Shield coating
A proprietary clear finish using microwave-powered UV curing technology. The marketing package describes a clean, flake-free surface with improved corrosion resistance. Ask sales about coating suitability for your application.
QUALITY & DOCUMENTATION
Specify the standard.
Discuss ASTM A513 and A500 requirements with sales. Fence-framework reference information also appears in the marketing package. Required grade, testing and documentation should be included in your quote request.
E&H’s company website identifies the business as ISO 9001 registered. Request the current certificate and scope from sales.
Technical reference library
Company overview, coating information, fence framework, dimensional tolerances and theoretical weights.
Download marketing package (PDF)
